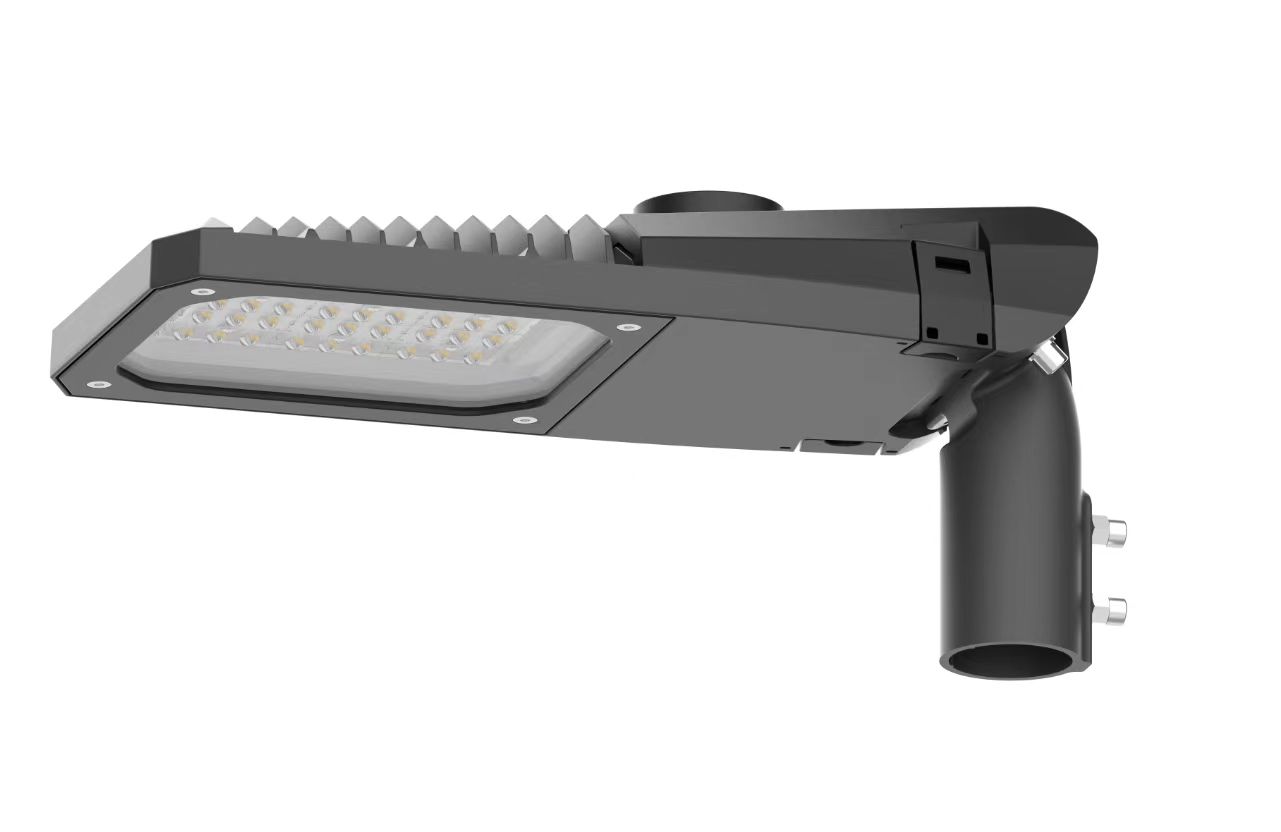

Horizontal and Vertical available adjustable angle-15°to+15° led street lighting.
The LED Street light housing manufacture from high pressure die-casting aluminum casing
Model kode | Housing Size mm | Pas krag | Lamp Post (mm) | Gewig (Kg) | Bykomstighede |
EK-LD13A | 492*183*97 | 30-50W | 60 | 2.4kg | Aluminum body tempered glass, Waterproof Rubber Ring,304 s/s screws, |
EK-LD13B | 541*200*113 | 60-80W | 60 | 2.8kg | |
EK-LD13C | 602*243*121 | 90-120W | 60 | 3.5kg | |
EK-LD13D | 652*263*121 | 120-150W | 60 | 4.0kg | |
EK-LD13E | 722*314*121 | 150-200W | 60 | 5.5kg | |
EK-LD13F | 823*314*121 | 240-300W | 60 | 6.1kg | |
Legend: Std = IP66 IK08 | |||||
Housing Material :Die-cast Aluminum + Armored Glass | |||||
Werkstemperatuur -35 ℃ ~ 50 ℃ 20% ~ 90% HR |
Produk Funksies
- Aluminiumliggaam is gemaak van ADC12-aluminiumgietwerk, die oppervlak wat deur spuitverf behandel is om korrosie en kleurbestendigheid te voorkom.
- Large area heatsinks fin design for fast theory in favor of the connection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
- Kragverskafferboks om die lamp volledig en verenig te hou.
- Ventilasie-ontwerp om stof te voorkom en stilstaande water te voorkom om die ligte langlewetyd te bereik.
high-performance street lighting available in three sizes.
The LED Street lighting is manufactured from high pressure die-casting aluminum.
Led street light housing, Aluminum body street light
Shenzhen EKI Lighting Industrial Co., Ltd. is die vervaardiger van Aluminium Die-Casting LED Light Housing Met die verskillende van ons eie ontwikkelde ontwerp en tegnologie.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED High bay Heatsink, LED Downlight Empty Casting and so on.
Kenmerke van LED Straatligbehuising:
- Hoogs duursaamheid
- Hoë sterkte
- Nuutste ontwerpe beskikbaar
