5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Produknaam: Straatligliggaam
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Waterdigte indeks: IP66 IP67
Aardbewingbestande Indeks: IK08 IK09
Werkstemperatuur (℃): -20-60
Oppervlakkleur: Donkergrys, Liggrys, Swart, Pasgemaak, ens
Contain Accessories : Complete finished street lights
Produk Funksies
- Aluminiumliggaam is gemaak van ADC12-aluminiumgietwerk, die oppervlak wat deur spuitverf behandel is om korrosie en kleurbestendigheid te voorkom.
- Groot area heatsink vin ontwerp vir vinnige teorie ten gunste van die konveksie tussen koue en warm lug, om die goeie hitteafvoer van lampe te behou en die lig die hele leeftyd te verhoog.
- Kragverskafferboks om die lamp volledig en verenig te hou.
- Ventilasie-ontwerp om stof te voorkom en stilstaande water te voorkom om die ligte langlewetyd te bereik.

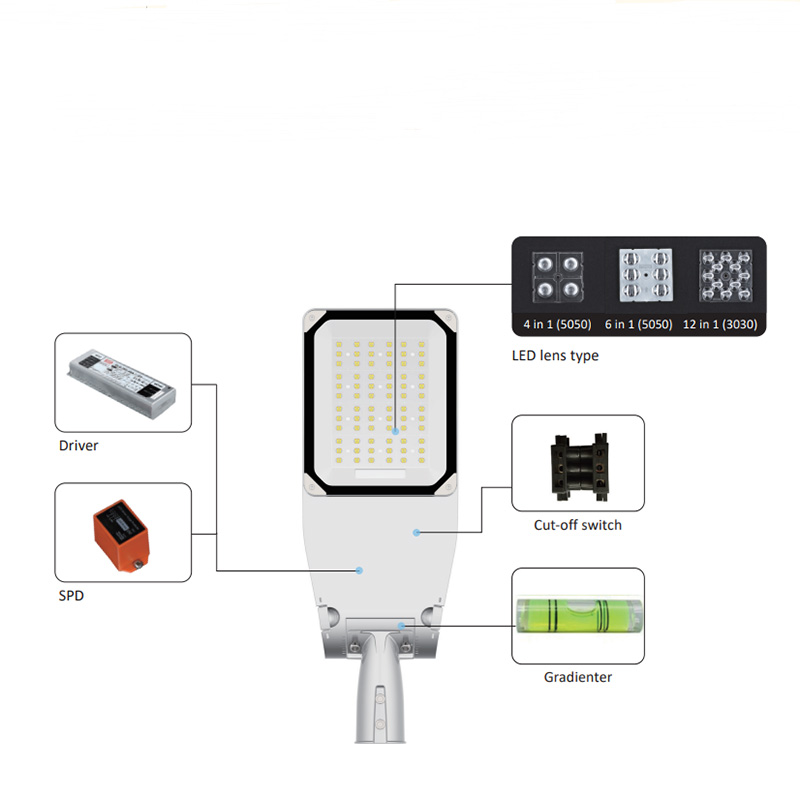

Product Details

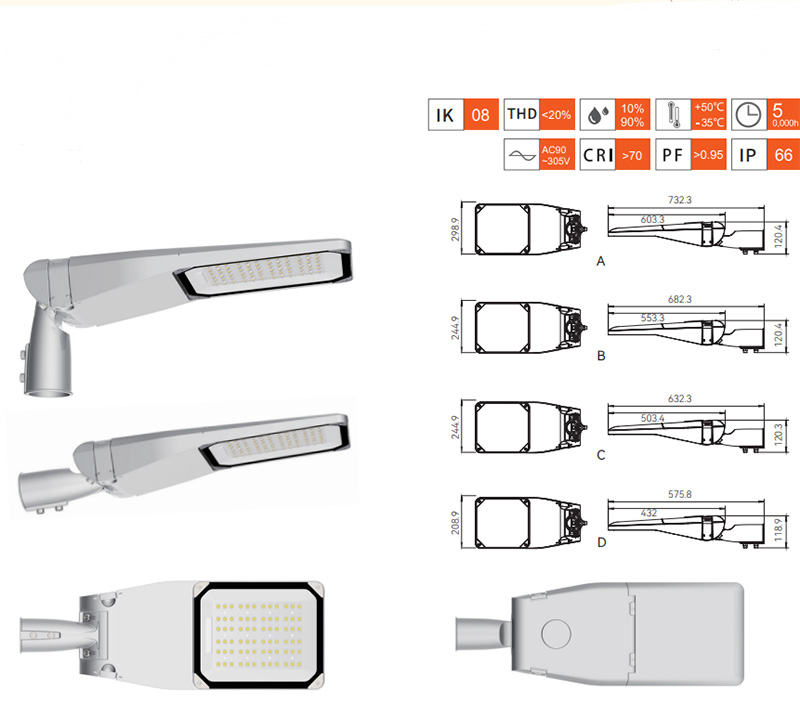

Product Size Chart
Spesifikasie en afmetings
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP Klas | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Materiaal | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
Shenzhen EKI Lighting Industrial Co., Ltd. is die vervaardiger van Aluminium Die-Casting LED Light Housing Met die verskillende van ons eie ontwikkelde ontwerp en tegnologie.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
